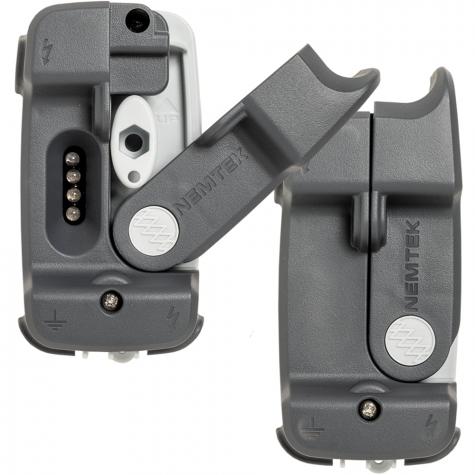

Nemtek Cut-Out Switch
Product Details
New! Take control of your electric fence system with a switch that works. The Nemtek Cut-Out Switch makes it easy to isolate sections, troubleshoot faster, and, with the LED option, know when your fence is live.
Why it matters:
- Power where you need it — Enter or exit paddocks without returning to the energizer
- Work safer — Shut off sections before repairs or adjustments to avoid accidental shocks
- Troubleshoot faster — Isolate problem areas without walking the entire fence line
- Secure your setup — Lever arm locks with a padlock in either the open or closed position
On the LED version, flashing voltage lights provide clear visual confirmation from a distance. No guessing whether the fence is on.
Instructions/Diagrams:
Cut-Out Switch Operation Manual
Specs
Cut-Out Switch (Standard) (Item #333003)
- Dimensions: 6"L × 3"W × 3"H
- Designed for outdoor use
- Stainless steel connections
- Lever arm locks with a padlock in either open or closed position
- Terminal nut tool/spacer included
- Mounting hardware NOT included; attach with a nail or wood screw
Cut-Out Switch with LED (Item #333002)
- Red LEDs flash when fence is energized; visible up to 300 yards (day) and ½ mile (night)
- No batteries required; uses minimal power from the fence
- Operating range: 0.9kV to 12kV
- Important: A ground rod (or nearby T-post) is required for LED operation. For easier installation, use a ring terminal harness for connections.
- Normal (~3 seconds): above ~7.5kV
- Slightly slower: 7.5kV to ~3kV
- Moderately slower: ~3kV to ~2.5kV
- Slowest: below ~2.5kV
Made by Nemtek in South Africa.
