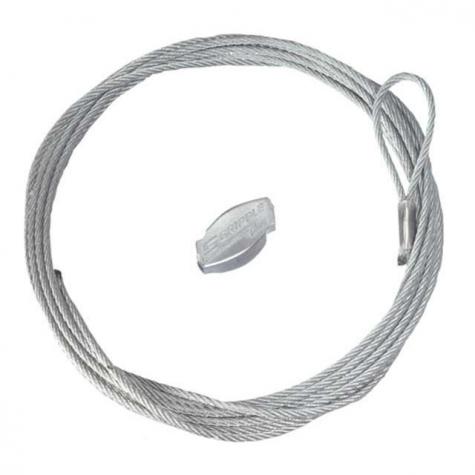

Speed Brace Cable by Gripple
For speed and convenience, the Speed Brace Cable is a Premier favorite when installing H Braces on any high-tensile (HT) fence.
- Includes: 1 Gripple and 1-16 ft cable
- Cable: 5/32" x 16'
- Breaking strength 1320 lbs
- Manufactured by Gripple
- Pass the loop around the lower end post. Slide the cable end through it.
- Slide Gripple over the cable.
- Pass the end around the top of the brace post and back through Gripple.
- Use the Gripple Tensioning Tool and it's done.
Note: We use 8' braces at Premier.
H Brace Mistakes
- Angles formed by horizontal bar, end post and brace wire are wrong. Result? The end post lifts up as you see to the right. Solutions? Either lower the brace bar or use a longer cross bar (10 ft or more). We now use an 8 ft long post as a brace bar but we set it only 36" above the soil. The brace wire attaches at the same 36" point.
- End post too small and/or not buried deep enough. For fences 3 to 4 ft tall, use 8" diameter end posts. Drive or set them 4 ft deep.
- Using floating braces. Regrettably we tried this design. They all ultimately failed.
- Live wires touching brace wires. When this occurs, as it does when posts move (like those shown at right have done), contact will occur and the fence will short out.
Listed below are recommended optional components or related items. Your particular situation may require alternative recommendations. Please call and talk to our consultants if there are any questions at 800-282-6631.
Gripple Torq Tensioning ToolItem #336830 -
Tensions wire using a Gripple (10 gauge, 12 gauge and barbed) without the need of an inline strainer or handle.$75.00
Gripple - Medium (10 to 14 gauge), eachItem #336800 -
Great for splicing woven wire, smooth high tensile steel wire and barbed wire.$1.75
Fence Connectors and Accessories
Brace Pin, 10" longItem #339100 -
For securing strain posts to cross braces in single and double-H braces. 5 and 10 inch.$1.10
