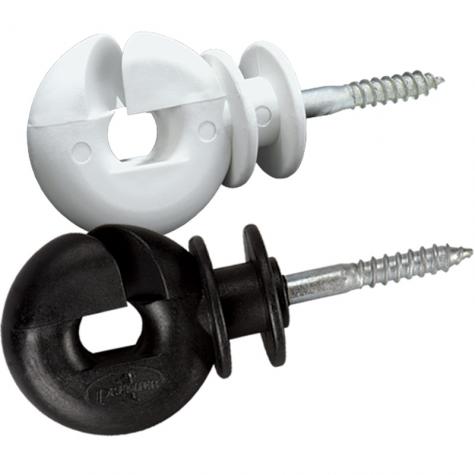

TuffRing™ II Insulator
Secure wood post insulator suited for starting and ending a fence line.
For easy installation, use our TuffRing II Power Driver.
Specs
- Ring: Nylon
- Shank: 0.23" diameter (goes half way around inside the ring), galvanized steel
- 25 per package, but sold individually
How to Use
- Predrill holes in the wood post.
- Put bit end of TuffRing II Power Driver into chuck of drill and tighten.
- Place power driver over the insulator so the ring of insulator fits into cup of driver. Drive insulator completely into post.
- Thread twine and rope, IntelliBraid, MaxiShock or IntelliTape. through insulator.
- Predrill holes in the wood post.
- Screw insulator completely into the post.
- Thread twine and rope, IntelliBraid, MaxiShock or IntelliTape. through insulator.
Tip
Listed below are recommended optional components or related items. Your particular situation may require alternative recommendations. Please call and talk to our consultants if there are any questions at 800-282-6631.
-
Insulators
TuffRing™ II Power Driver
Item #380703 -Allows use of a power drill to rapidly screw in ring-type insulators in and out of wood posts.
$8.50 -
Fence Connectors and Accessories
P Spring
Item #255010 -Used to keep rope fences at desired tension. Install a P Spring every 1320 ft.
$3.10 -
Conductors - Rope-Twine-Wire-Tape
EnduraSoft® 6.0, 660 ft roll
Item #256500 -Highly visible polyester electric fence conductor with excellent conductivity over long distances. 6mm (1/4") diameter. 25 years probable life.
$98.00 -
Fence Connectors and Accessories
RopeLink 2.6 (for 6mm rope)
Item #256210 -For splicing or terminating 4.5mm and 6.0mm fence conductors. A fast, yet secure connection.
$0.82 -
Fence Connectors and Accessories
Fence & Battery Digital Tester
Item #200010 -All-in-one fence tester checks the voltage of energizers, fences and 12V batteries. Simplify electric fence troubleshooting with one device!
$24.00 -
Fencing
Warning Sign
Item #346000 -Let passersby know that your fences are electrified with this easy-to-read electric fence warning sign.
$1.60 -
Conductors - Rope-Twine-Wire-Tape
IntelliBraid®, 660 ft. roll
Item #256710 -6mm (1/4") dia. braided rope conductor for electric fences. Black/white color is easy for humans and livestock to see. Polyester for high UV-resistance.
$113.00 -
Conductors - Rope-Twine-Wire-Tape
IntelliRope® PE 4.5, 660 ft roll
Item #245100 -4.5mm (3/16") electrifiable rope for permanent or rotational grazing fences. Tinned copper filaments for high conductivity (50 Ω per 1000 ft).
$40.00 -
Conductors - Rope-Twine-Wire-Tape
IntelliTwine™ 2.25, 660 ft. roll
Item #253500 -2.25mm (12 gauge/.09" dia.) electric fence conductor for temporary livestock and garden fences. Lightweight and easy to move.
$23.00 -
Conductors - Rope-Twine-Wire-Tape
MaxiShock™ Wire, 1320 ft. roll
Item #251000 -Twisted cable conductor for electric fences. Thick layer of galvanized coating for years of outdoor use.
$129.00 -
Conductors - Rope-Twine-Wire-Tape
IntelliTape™, 330 ft. roll
Item #257010 -A 1/2" wide electric fence conductor whose visibility is ideal for horses and other large, fast moving livestock.
$18.00
Write a Review
You must be logged in to leave a review. Please sign in.
Amanda R from Iowa
These are not for high tensile wire. The high tensile wire grounds out right through them.
Susan P from North Carolina
These are strong and hold up well.
James G from Iowa
Great!
Rafael G from Iowa
I have used this in the past. Easy to install and they hold good tension for electric rope.
Sheila F from Wisconsin
Good sturdy insulator that is easy to install and holds both rope and wire securely. In addition, we have placed several orders with Premier 1 and have had prompt excellent service each time. They have been wonderful to work with going the extra mile to find and send us a few other items that were listed as out of stock, as we only needed a couple.
