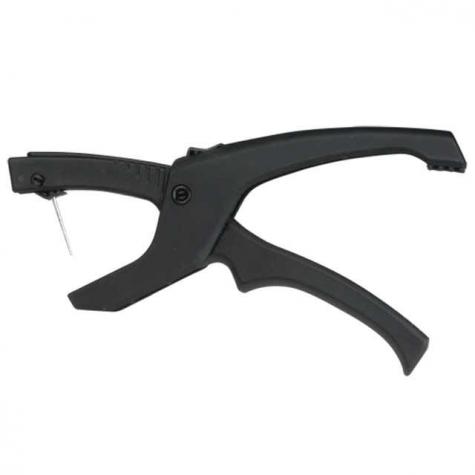

Z Tag Applicator

★ ★ ★ ★ ★ Write a review »

Installs one piece Z Tags.

Special pin system uses no knives or blades and prevents pin contact with ear.

  • Z Tag Applicator

    Item #620115 | Weight 0.45 lbs
    In Stock
    $23.00

  • Spare Pin for Z Tag Applicator

    Item #620125 | Weight 0.01 lbs
    In Stock
    $2.50
Data

Instructions/Diagrams:

Common Uses
For placement of Z Tags into the ears of livestock.

Specs

Benefits
  • Special pin system uses no knives or blades and prevents pin contact with ear.
  • Comes with an extra applicator pin.
  • Durable glass-filled nylon construction.
  • Locks closed for easy fit into pockets.

Tips
Tag placement is critical to success! For maximum retention and the lowest risk of bleeding and infection, place ear tags in either of the two spots shown in the illustration below. The goal is about 2-3 inches from the head of the animal.

Ear tag placement

How-to: Insert Ear Tags in Cold Weather

Plastic tags (all brands) are much easier to install if they are warm. Why? As the temperature drops below freezing, plastic becomes less flexible (more stiff). Forcing the male point of a tag through the female takes many more lbs. of pressure (because the female must expand).

So if you care about your hands it’s a good idea to keep the tags above freezing in very cold weather. It takes very little to do this. One method is to simply store them while tagging in a small bucket, cardboard box or tool box with a lid alongside a sealed pop bottle full of warm water. The warm water will keep both the air and the tags warmer in the container.

How to Use
  • Flip applicator pin up to tag loading position.
  • Insert pin into tag.
  • Straighten self piercing tip and push down onto pin. Make sure tag is fully seated on the pin before tagging.
  • Rotate tag to the side. Flip the applicator pin down into tagging position.
  • Tag through the front of the ear only. To apply tag, squeeze handles firmly together and hold closed.
  • To remove applicator, pull the Z Tags applicator straight down and away from the ear on one single motion. Do not release the applicator handles at any point during step.
  • When the Z Tags applicator is pulled away from the ear, the pin automatically flips up to eliminate ripped ears and damage to the pin.

      • Instructions also included with packaging. There is a spare pin located in the bottom of the handle. Use a light lubricant on the applicator and pin to increase workability and guarantee long life. When writing your own numbers with the Z Tags marking pen, be sure to apply two good coats of ink to allow maximum penetration into the tag panel. This process will guarantee longer lasting numbers.

Precautions
Do not use existing ear tag holes. Conventional 2 piece ear tags damage and weaken the surrounding ear tissue; application of Z tags in these existing holes could lead to lost tags.

Tag has a sharp point, please exercise caution.

For animals with soft ears: young calves; it is important to grasp the tip of the ear with a free hand and hold the ear taut to add support and ensure complete penetration of the tag tip through the ear.

Does not insert two piece tags.

Accessories

Listed below are recommended optional components or related items. Your particular situation may require alternative recommendations. Please call and talk to our consultants if there are any questions at 800-282-6631.
