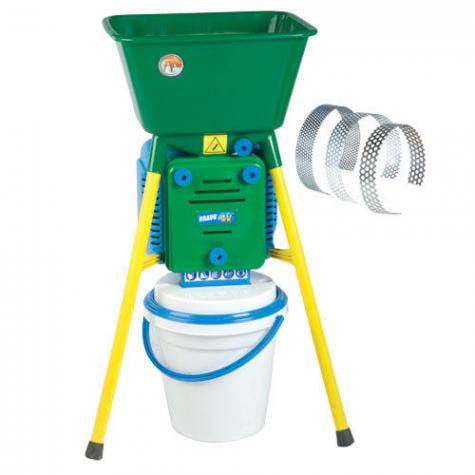

Bravo Feed Grinder
110V hammermill is an easy to use grinder that allows for at-home production of livestock feed.
Includes grinder, bucket and 3 sieves (4, 6 and 8 mm).
Can also be used with the 1 and 2.5mm sieve (sold separately below) to produce a coarsely ground flour.
Instructions/Diagrams:
Common Uses
- For grinding corn and other grains into more manageable sizes for livestock.
- Useful for producing small batches or mixing home blends of feed.
- Produces a coarsely ground flour for baking.
Specs
- 110V (cord length: 4 ft 6 in)
- 1.2 HP motor. 900 watts.
- Start-up draw 23.5 amps, working under load draw 9.47 amps.
- The bin for storing grain prior to grinding measures 17" x 19".
- The lower portion of the bin where the grain sits before processing measures 10-1/2" x 9-1/2".
- The base is 16-1/4" off the ground.
- The opening where the processed grain drops out is 6-1/2" x 2-3/4".
Benefits
- 110V allows it to be powered by any normal house outlet, no need for the installation of a 220V outlet.
- Save on the cost of the feed store mixing feed, make it at home the way your animals like it.
- Portable, only 30 lbs and can moved to where its needed when its needed.
- With the 1 and 2.5mm sieves (sold separately above) you can produce coarse flour.
Precautions
Warranty
Listed below are recommended optional components or related items. Your particular situation may require alternative recommendations. Please call and talk to our consultants if there are any questions at 800-282-6631.
-
Top
Sieve 1mm - 18
Item #53008181 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$11.50 -
Buckets and Troughs
TurboScoop
Item #938351 -5 lb capacity scoop with forward facing handle. Useful for scooping feed out of bags or narrow containers.
$9.00 -
Buckets and Troughs
Round Bucket without lid, 3.5 gallon
Item #564500 -All-purpose round buckets for chores on the farm. Carry water, feed or minerals to livestock and poultry. 1 gal, 2 gal and 3.5 gal capacities.
$8.50 -
Buckets and Troughs
Lid, for the 3.5 gallon bucket
Item #564600 -All-purpose round buckets for chores on the farm. Carry water, feed or minerals to livestock and poultry. 1 gal, 2 gal and 3.5 gal capacities.
$2.40
See the Data Tab above for a Replacement Parts Diagram.
-
Top
Framework - 01
Item #5300801 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$16.56 -
Top
Bravo Hopper - 02
Item #5300802 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$34.27 -
Top
110 volt motor - 03
Item #5300803 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$247.00 -
Top
Security Device - 04
Item #5300804 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$69.15 -
Top
Back Door - 05
Item #5300805 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$6.38 -
Top
Yellow Leg - 06
Item #5300806 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$4.03 -
Top
Screw - 07
Item #5300807 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.09 -
Top
Screw - 08
Item #5300808 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.16 -
Top
Sluice Gate - 09
Item #5300809 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$2.07 -
Top
Hand Wheel 40 with screw, M 6x20 - 10
Item #5300810 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.44 -
Top
Blue Opening - 11
Item #5300811 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.88 -
Top
Tank (Bucket & Lid) - 12
Item #5300812 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$31.37 -
Top
Sheet & Slide - 13
Item #5300813 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$4.59 -
Top
Left Side Bulkhead - 14
Item #5300814 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$1.86 -
Top
Side Bulkhead - 15
Item #5300815 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$1.86 -
Top
Sleeve - 16
Item #5300816 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.77 -
Top
Screw - 17
Item #5300817 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.09 -
Top
Sieve 1mm - 18
Item #53008181 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$11.50 -
Top
Sieve 4mm - 18
Item #53008184 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$8.05 -
Top
Sieve 6mm - 18
Item #53008186 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$8.05 -
Top
Sieve 8mm - 18
Item #53008188 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$8.05 -
Top
Door (green) - 19
Item #5300819 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$10.07 -
Top
Hand Wheel 40 with screw, M 8x120 - 20
Item #5300820 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.95 -
Top
Hand Wheel 40 with screw, M 8x90 - 21
Item #5300821 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.60 -
Top
Overload Cutout Switch - 22
Item #5300822 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$36.51 -
Top
Screw M 8x16 - 23
Item #5300823 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.21 -
Top
Spacer - 24
Item #5300824 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$1.08 -
Top
Hammer for Uni-Bloc - 25
Item #5300825 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$1.23 -
Top
Blade Hub - 26
Item #5300826 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$11.18 -
Top
Elastic Pin - 27
Item #5300827 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.12 -
Top
Nut M8 - 28
Item #5300828 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$0.22 -
Top
Hub with 12 Hammers & Spacer - 29
Item #5300829 -Replacement parts for the Bravo Feed Grinder that have worn out, or are broken.
$41.10
Write a Review
You must be logged in to leave a review. Please sign in.
John R from Oklahoma
The only reason it does not rate 5-stars is due to the apparent packaging of known damaged goods before it was shipped. The original box had been punctured and the materials/parts inside were compromised. The box it was actually shipped in was undamaged. 2-stars
The machine itself works really well. 5-stars
The subsequent service call to correct/replace the damaged parts - excellent. Really nice folks and very responsive to my concerns. 5-stars
Recommend the product and the provider.
John B from Iowa
Works great! We grind whole kernel corn into flour. Depending on how dry the corn is it grinds a buschel in 4-6 hours. When starting grinder up you need to be careful that there is not too much corn in the bottom section else the thermal breaker will keep tripping until you open it up and clean it out.
Edith W from Louisiana
Works great. Purchased for my husband to use for corn grinding to feed the animals. No problems at all.
Jeff B from California
Works surprisingly well given the primary colored plastic... looks like a kid’s toy!
Easy to assemble. Love the spring-loaded bucket top that connects with the hopper and prevents dust. It is quiet and efficient. The motor is surprisingly strong and even at full open it does not bind up.
Except for the 1MM sieve. Tring to do a corn flour and it keep clogging.
Main complaint is that I need a sieve-size between 1MM and 4MM. Just ordered some perforated stainless sheeting that is 2.4MM and will attempt to fabricate a customer sieve.
Chad G from Washington
I use this to grind hog feed. It will crack a barley/pea mix very well with the 4mm sleeve. The supplied bucket and dust filter holds about 4 gallons or 20 pounds of material.
Since I'm feeding 100 pounds a day I overcame the issue about bulk grinding feed by using a sixty gallon orange food grade barrel. The supplied dust cap fits the barrel opening almost exactly. I suspended the grinder above it at just the right height for everything to fit snugly. The hopper will hold 60 pounds of material, or about 3 supplied buckets. You can't grind all of that at once with the bucket, but you can when it drops into a barrel. The 4mm sleeve will grind the hopper in less than 20 minutes while you do other things. I'm going to move to a 1mm sleeve because I want a finer mix for palatability and digestability. Since I use this bulk method, the added time won't affect me because I can do other tasks than overwatch the grinder.
